Flagship · Lawhill Series 7 Modules
Cut Sheet Folio Finishing System
A fully integrated guillotine, stitching and tape binding line that turns pre-printed, collated cut sheet folios into finished cheque books, payment books, prescription pads and booklets in a single pass.
Cheksafe · Front elevation · 3,800 mm overall
1,500books / hr
Cycle speed on five-to-view folios
12,000+per shift
Typical net output over 8 hours
13mm
Maximum folio thickness (105 pages)
20+years
Design life with parts support
01 / How It Works
Cut sheet laser printers produce folios printed three, four or five booklets to view. The operator feeds each folio at the guillotine, and from there every booklet is cut, stitched, bound and delivered automatically, controlled from a single centralised touchscreen.
Folios are placed on the registration infeed table. Photocell registration aligns each folio beneath the hydraulic blade, and infeed fingers index it forward cut after cut until every booklet is separated.

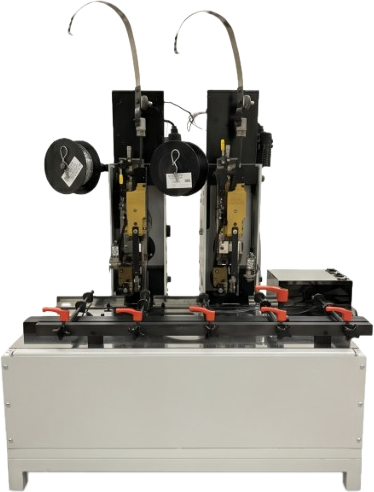

A pneumatic arm transfers each booklet to the reciprocating main track. Deluxe G20 heads insert two stitches 6 mm from the spine, with stitch-detect verification on every book.

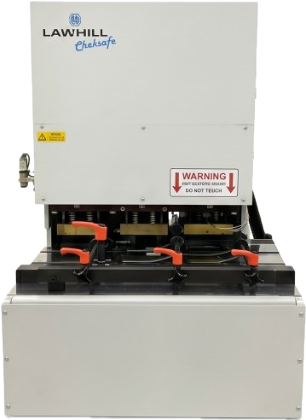

Hot-melt tape is formed around the spine in three heated stages: applied to the top surface, folded down the spine, then wiped across the underside for a clean, tamper-evident finish.

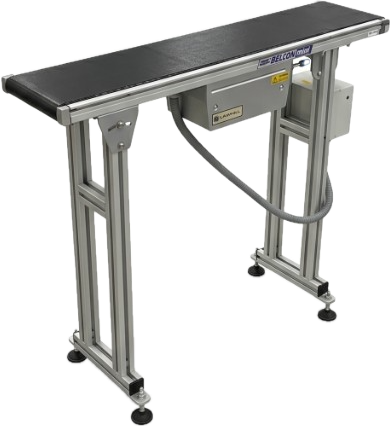

Completed booklets are delivered onto the output conveyor, ready for final inspection, packaging, or on-line wrapping and enveloping.
02 / Technical Specification
Standard operating ranges are shown below. Sizes outside these ranges can normally be accommodated. Please specify them when you enquire.
03 / Optional Modules
Add verification, wrapping and enveloping on-line, all controlled from the same HMI as a single unified system.
Integrity & Verification
Replaces manual loading with automatic feeding and collating, then verifies every sheet before stitching for 100% document integrity. Combined with Cheksafe it forms the Cheksure system.
On-line Mailing
Wraps finished booklets in a pillow pack with two end seals and a single long seal, giving a fully automatic, space-saving on-line mailing facility.
Inserter Integration
Taped books are transferred one at a time onto your inserter, so they go straight into envelopes. A bridging conveyor lets both machines also run independently.
Site Services
Where no suitable on-site compressed air supply is available, a matched compressor unit can be supplied with the system.
04 / Gallery
HMI Touchscreen
/images/hmi-display.jpg
Registration Infeed Table
/images/infeed-table.jpg
Control Rack
/images/control-rack.jpg
Cheksafe in Production
/images/cheksafe-in-situ.jpg
05 / Video Library
Demonstrations of Cheksafe and its on-line modules running in real production environments.
Featured

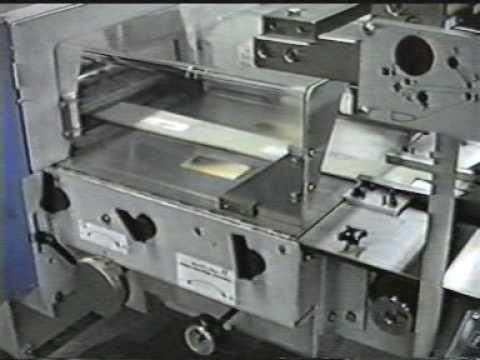

Over thirty years old and still in daily production: the system that defined the Cheksafe concept.

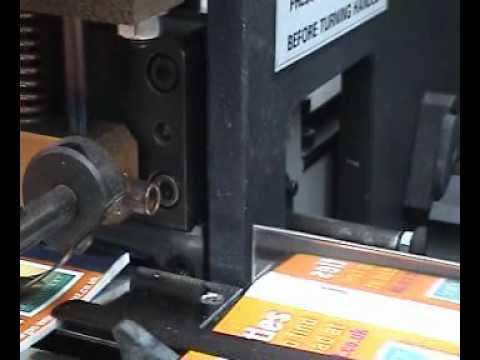

Cheque book finishing fed by verified folios for guaranteed integrity.

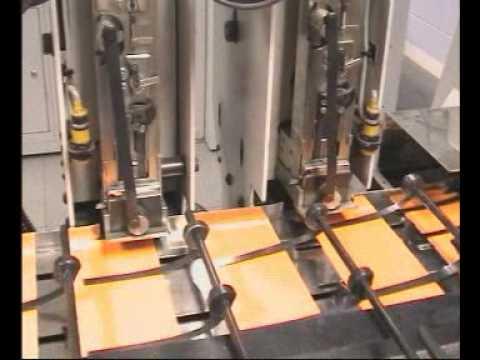

Laser barcode verification of every sheet before cutting, stitching and binding.

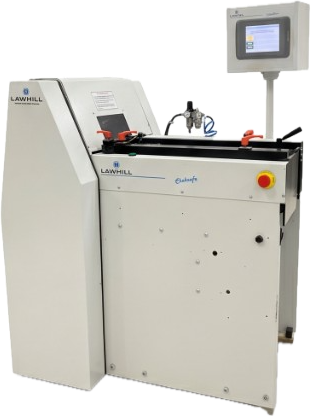

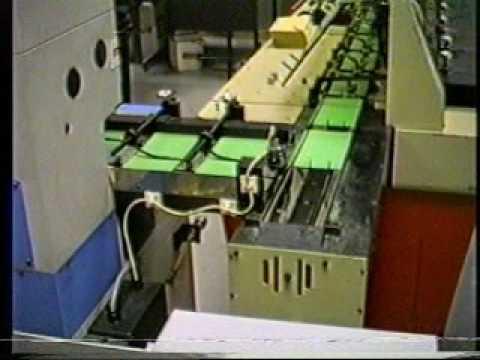

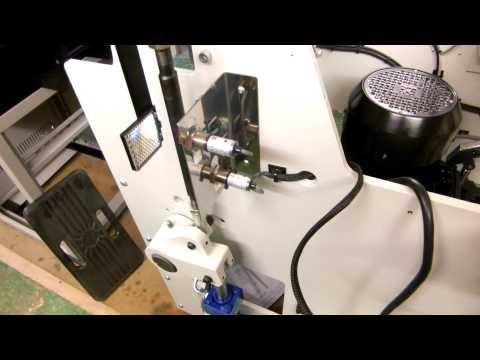

The hydraulic guillotine module under factory test, indexing and cutting folios into individual books.

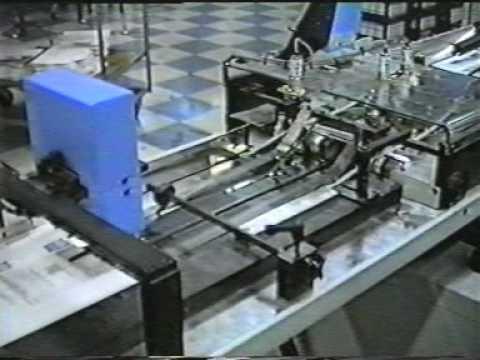

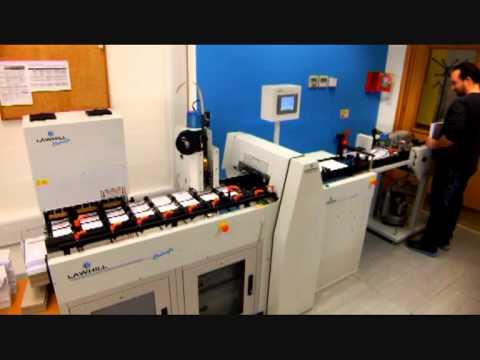

Cheksafe running on-line with a 6-station Phillipsburg inserting system.
The compact Lawhill MINI folio finishing system fitted with a tape binding module.
Fully automatic on-line wrapping of finished booklets for postal delivery.
06 / Downloads
Floor plans, drawings and brochures to support your factory planning and capital approval process.
Specification & overview
Layout, services & weights
2D general arrangement
For factory planning
07 / Service & Support
Every Cheksafe includes installation, commissioning, operator training, a complete tool kit and a front-line spare parts kit.
Commissioning in around two days, followed by up to three days of hands-on operator training.
Ethernet-connected control with TeamViewer and VNC access for remote troubleshooting and HMI operation.
With-parts maintenance cover and engineer training, with components available for at least 20 years.
Case study · Ohio, USA
Installed entirely remotely during lockdown. Now running around the clock on two shifts, with under two hours of downtime on just two support calls since 2022.
Tell us your booklet formats, volumes and integration needs, and our engineers will prepare a detailed technical proposal.
